System Behavior (Use Cases)

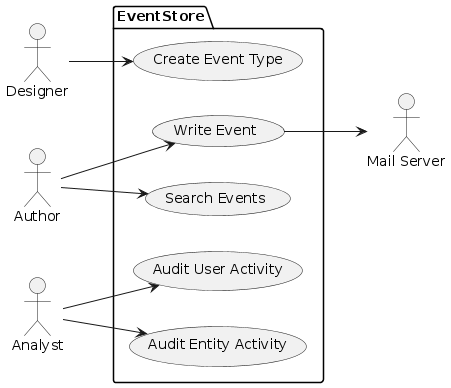

Use Case Diagram

Primary Actors:

• Designers
• Authors
• Auditors

Use Cases:

• Create Event Type
• Write Event
• Search Events
• Audit User Activity
• Audit Entity Activity

Secondary Actors:

• Mail Server

Use Case Narrative: Write Event

Use Case Name

Write Event

Primary Actor

Author

Goal

Record an event in the event stream. Optionally, the event may be linked to other events. For example, an event recording a correction to an address is linked to the address-create event.

Preconditions

• The event to be recorded must consist of valid JSON.

Main Succes Scenario

1. The author submits an event
2. The system generates a universally-unique event ID and associates this event ID to the event
3. The system provides success confirmation and the event ID to the author.

Extensions (Alternative Flows)

• 1a. Invalid JSON:
  • The system notifies the author and provides an error message with some indication of what is invalid about the JSON
  • The event is not recorded in the event stream
• 1b. Non-existent referenced event:
  • The system notifies the author that one or more referenced events do not exist (listing each such non-existent referenced event)
  • The event is not recorded in the event stream
• 3a. Send e-mail notification of event
  • The event may be such that someone needs to receive an email alert.

Postconditions

1. The event is recorded
2. The event is returned by searches that match the event data (e.g., by event ID)
3. If and only if the event matches a pattern that should generate an email, an appropriate email is sent to the right e-mail address.
